"""Check for item 2 of 06-ilang-source/08-typical-or-forced (role: check).

One field object (N_f = 1, n = 1/|X|) of class F with r = 2 internal places on a ring (D = 1)
or a square torus (D = 2) of side L. Own contract h = sum_a sum_x |x+a><x| (x) h_a with Bloch
matrix h(k) = -2t sum_mu cos k_mu + Delta |2><2| + lam sin k_1 sigma_1 (lowest state at k_0 = 0),
coupled operator Phi_x = |x><x| (x) phi, source at x_s = 0.
chi_0(x, x_s) of (3.6) is computed from the eigenvectors of h and compared with the Bloch formula
(8.8) and with the large-distance forms (8.10), (8.11), (8.13). All values are reported as chi/(2n).
"""
from pathlib import Path

import matplotlib
import numpy as np

matplotlib.use("Agg")
import matplotlib.pyplot as plt  # noqa: E402

OUT = Path(__file__).parent / "output"
OUT.mkdir(exist_ok=True)
T, DELTA = 1.0, 1.5
SX = np.array([[0, 1], [1, 0]], complex)
P2 = np.diag([0, 1]).astype(complex)
PHI_LR = np.array([[1.0, 0.3], [0.3, -0.5]], complex)
LOG = []


def log(s=""):
    print(s)
    LOG.append(s)


def blocks(D, lam):
    """Hopping blocks h_a of h = sum_a sum_x |x+a><x| (x) h_a, h(k) = sum_a exp(-i k.a) h_a."""
    b = {(0,) * D: DELTA * P2}
    for mu in range(D):
        e = np.zeros(D, int)
        e[mu] = 1
        hp = -T * np.eye(2, dtype=complex) + (0.5j * lam * SX if mu == 0 else 0)
        b[tuple(e)] = hp
        b[tuple(-e)] = hp.conj().T
    return b


def h_bloch(k, blk):
    return sum(np.exp(-1j * np.dot(k, a)) * M for a, M in blk.items())


def lowest(blk, k):
    ev, W = np.linalg.eigh(h_bloch(k, blk))
    return ev[0], W[:, 0]


def grid(L, D):
    return np.array(np.unravel_index(np.arange(L ** D), (L,) * D)).T


def chi_direct(L, D, blk, phi):
    """chi_0(x, 0) of (3.6) from the full diagonalization of h on |X| x r places."""
    n, xs = L ** D, grid(L, D)
    H = np.zeros((2 * n, 2 * n), complex)
    for a, M in blk.items():
        tgt = np.ravel_multi_index(((xs + np.array(a)) % L).T, (L,) * D)
        for s in range(n):
            H[2 * tgt[s]:2 * tgt[s] + 2, 2 * s:2 * s + 2] += M
    assert np.allclose(H, H.conj().T)
    e, U = np.linalg.eigh(H)
    assert e[1] - e[0] > 1e-8, "lowest eigenvector not unique"
    Ur = U.reshape(n, 2, -1)
    amp = np.einsum("xo,op,xpm->xm", Ur[:, :, 0].conj(), phi, Ur)  # <u_0|phi_x|u_m>
    chi = 2 * np.real(amp[:, 1:] * amp[0, 1:].conj()) @ (1 / (e[1:] - e[0]))
    return chi.reshape((L,) * D)


def chi_bloch(L, D, blk, phi):
    """(8.8) with k_0 = 0: chi(d) = (2n/|X|) sum_q cos(q.d) S_L(q)."""
    e0, w0 = lowest(blk, np.zeros(D))
    S = np.empty(L ** D)
    for i, k in enumerate(2 * np.pi * grid(L, D) / L):
        ev, W = np.linalg.eigh(h_bloch(k, blk))
        m2 = np.abs(W.conj().T @ phi @ w0) ** 2
        keep = ev - e0 > 1e-12  # drops only (k_0, l = 0)
        S[i] = np.sum(m2[keep] / (ev[keep] - e0))
    return 2 / L ** D * np.real(np.fft.ifftn(S.reshape((L,) * D)))


def band_data(D, blk, phi, eps=1e-3):
    """phibar = <w0|phi|w0>; A = Hessian/2 of the lowest band at k_0; C = Hessian/2 of |F(q)|^2."""
    _, w0 = lowest(blk, np.zeros(D))
    phibar = np.real(w0.conj() @ phi @ w0)
    E = lambda q: lowest(blk, q)[0]  # noqa: E731
    F2 = lambda q: abs(w0.conj() @ phi @ lowest(blk, q)[1]) ** 2  # noqa: E731
    A, C = np.zeros((D, D)), np.zeros((D, D))
    for mu in range(D):
        for nu in range(D):
            em, en = np.eye(D)[mu] * eps, np.eye(D)[nu] * eps
            for f, Mat in ((E, A), (F2, C)):
                Mat[mu, nu] = (f(em + en) - f(em - en) - f(en - em) + f(-em - en)) / (8 * eps ** 2)
    return phibar, A, C


def pred_lattice(L, D, ratio):
    """(1/|X|) sum_{q != 0} cos(q.d) ratio(qhat), qhat_mu = 2 sin(q_mu/2): lattice form of chi/(2n)."""
    qh = 2 * np.sin(np.pi * grid(L, D) / L)
    val = np.array([ratio(v) if np.any(v != 0) else 0.0 for v in qh])
    return np.real(np.fft.ifftn(val.reshape((L,) * D)))


def osc(c):
    """Omega(d) = max - min of c over graph distances d..L/2."""
    return np.array([c[i:].max() - c[i:].min() for i in range(len(c))])


rows_ring, rows_torus = [], []
fig, ax = plt.subplots(1, 2, figsize=(11, 4.2))
log("Check of item 2: chi_0(x, x_s) of (3.6) for one field object (N_f = 1), r = 2, x_s = 0.")
log(f"t = {T}, Delta = {DELTA}; all values are chi/(2n), n = 1/|X|.")

# ---------------- rings ----------------
ring = {"LR": (0.5, PHI_LR), "phibar0": (0.5, SX), "sector": (0.0, SX)}
styles = {"LR": "-", "phibar0": "--", "sector": ":"}
for name, (lam, phi) in ring.items():
    blk = blocks(1, lam)
    phibar, A, C = band_data(1, blk, phi)
    a = A[0, 0]
    log(f"\n[ring] member {name}: lam = {lam}, phibar = {phibar:.6f}, A = {a:.6f} "
        f"(analytic t - lam^2/Delta = {T - lam ** 2 / DELTA:.6f}), C = {C[0, 0]:.6f}")
    for L in (40, 80, 160):
        chi = chi_direct(L, 1, blk, phi)
        err = np.max(np.abs(chi - chi_bloch(L, 1, blk, phi))) * L / 2
        c = chi[: L // 2 + 1] * L / 2
        d = np.arange(L // 2 + 1)
        om = osc(c)
        msg = f"  L = {L:4d}: max |direct - Bloch (8.8)| = {err:.2e}; Omega(L/4) = {om[L // 4]:.3e}"
        if name == "LR":
            p = pred_lattice(L, 1, lambda q: phibar ** 2 / (a * q[0] ** 2))[: L // 2 + 1]
            sel = slice(6, L // 2 - 5)
            r = (c[sel] - c[-1]) / (p[sel] - p[-1])
            msg += (f"; (chi(d)-chi(L/2))/(pred(d)-pred(L/2)) over 6<=d<=L/2-6: "
                    f"max|ratio-1| = {np.max(np.abs(r - 1)):.2e}; slope -(chi(12)-chi(8))/4 = "
                    f"{-(c[12] - c[8]) / 4:.4f} vs phibar^2/(2A)(1-20/L) = "
                    f"{phibar ** 2 / (2 * a) * (1 - 20 / L):.4f}")
        elif name == "phibar0":
            kap = np.arccosh((4 * T ** 2 + 2 * T * DELTA - lam ** 2) / (4 * T ** 2 + lam ** 2))
            fit = -np.polyfit(d[4:15], np.log(np.abs(c[4:15] - c[-1])), 1)[0]
            msg += (f"; chi(L/2)/(2n) = {c[-1]:.3e} (O(1/L) constant); fitted decay rate of "
                    f"|chi(d)-chi(L/2)| (4<=d<=14) = {fit:.5f} vs nearest zero of det(h(k)-e0): {kap:.5f}")
        else:
            kap = np.arccosh(1 + DELTA / (2 * T))
            ex = np.cosh(kap * (L / 2 - d)) / (2 * T * np.sinh(kap) * np.sinh(kap * L / 2))
            msg += f"; max|chi/(2n) - exact (8.13)| = {np.max(np.abs(c - ex)):.2e} (kappa = {kap:.5f})"
        log(msg)
        for di in d:
            rows_ring.append((name, L, di, c[di], om[di]))
        if L in (40, 160):
            ax[0].semilogy(d[:-1], om[:-1], styles[name], label=f"{name}, L={L}")

# ---------------- tori ----------------
torus = {"LR": (0.5, PHI_LR), "phibar0": (0.5, SX)}
for name, (lam, phi) in torus.items():
    blk = blocks(2, lam)
    phibar, A, C = band_data(2, blk, phi)
    a1, a2 = A[0, 0], A[1, 1]
    log(f"\n[torus] member {name}: lam = {lam}, phibar = {phibar:.6f}, A = diag({a1:.6f}, {a2:.6f}) "
        f"(offdiag {A[0, 1]:.1e}), C = [[{C[0, 0]:.6f}, {C[0, 1]:.1e}], [., {C[1, 1]:.1e}]]")
    for L in (20, 32):
        chi = chi_direct(L, 2, blk, phi)
        err = np.max(np.abs(chi - chi_bloch(L, 2, blk, phi))) * L ** 2 / 2
        c = chi * L ** 2 / 2
        if name == "LR":
            p = pred_lattice(L, 2, lambda q: phibar ** 2 / (a1 * q[0] ** 2 + a2 * q[1] ** 2))
        else:
            p = pred_lattice(L, 2, lambda q: (q @ C @ q) / (a1 * q[0] ** 2 + a2 * q[1] ** 2))
        log(f"  L = {L}: max |direct - Bloch (8.8)| = {err:.2e}")
        for axis in (0, 1):
            d = np.arange(L // 2 + 1)
            cd = c[d, 0] if axis == 0 else c[0, d]
            pd = p[d, 0] if axis == 0 else p[0, d]
            for di in d:
                rows_torus.append((name, L, axis + 1, di, cd[di], pd[di]))
            if name == "LR":
                ref = L // 2
                s = ", ".join(f"d={di}: {(cd[di] - cd[ref]) / (pd[di] - pd[ref]):.4f}" for di in (3, 5, 7))
                log(f"    axis {axis + 1}: (chi(d)-chi(L/2))/(pred(d)-pred(L/2)), "
                    f"pred = lattice form of phibar^2/(q^T A q): {s}")
            else:
                cc, pc = c[L // 2, L // 2], p[L // 2, L // 2]  # far corner as reference
                k_inf = (-C[0, 0] / (2 * np.pi * np.sqrt(a1 * a2)) if axis == 0
                         else C[0, 0] * np.sqrt(a2) / (2 * np.pi * a1 ** 1.5))
                s = ", ".join(f"d={di}: {di ** 2 * (cd[di] - cc):+.5f} (pred {di ** 2 * (pd[di] - pc):+.5f})"
                              for di in (4, 6, 8, 10))
                log(f"    axis {axis + 1}: d^2 (chi(d)-chi(corner))/(2n), pred = lattice form of "
                    f"q^T C q/(q^T A q): {s}; L -> infinity value of d^2 chi/(2n) = -C11 d^2 (d/dd1)^2 G_A = {k_inf:+.5f}")
                if L == 32:
                    dd = d[2:]
                    ln = ax[1].plot(dd, dd ** 2 * (cd[2:] - cc), "o", label=f"direct, axis {axis + 1}")
                    ax[1].plot(dd, dd ** 2 * (pd[2:] - pc), "-", color=ln[0].get_color(),
                               label=f"lattice form of (8.11), axis {axis + 1}")
                    ax[1].axhline(k_inf, ls=":", color=ln[0].get_color())

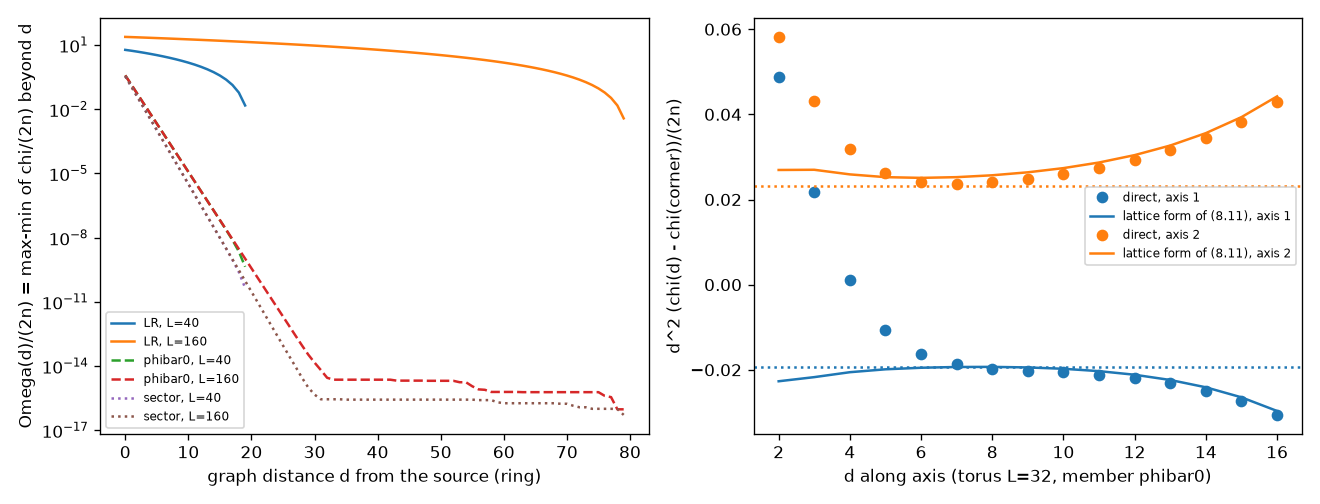

ax[0].set_xlabel("graph distance d from the source (ring)")
ax[0].set_ylabel("Omega(d)/(2n) = max-min of chi/(2n) beyond d")
ax[0].legend(fontsize=7)
ax[1].set_xlabel("d along axis (torus L=32, member phibar0)")
ax[1].set_ylabel("d^2 (chi(d) - chi(corner))/(2n)")
ax[1].legend(fontsize=7)
fig.tight_layout()
fig.savefig(OUT / "decay.png", dpi=120)
np.savetxt(OUT / "chi_ring.csv", np.array(rows_ring, dtype=object), fmt="%s", delimiter=",",
           header="member,L,d,chi_over_2n,Omega_over_2n", comments="")
np.savetxt(OUT / "chi_torus.csv", np.array(rows_torus, dtype=object), fmt="%s", delimiter=",",
           header="member,L,axis,d,chi_over_2n,lattice_pred_over_2n", comments="")
(OUT / "check_log.txt").write_text("\n".join(LOG) + "\n", encoding="utf-8")

Check of item 2: chi_0(x, x_s) of (3.6) for one field object (N_f = 1), r = 2, x_s = 0.
t = 1.0, Delta = 1.5; all values are chi/(2n), n = 1/|X|.

[ring] member LR: lam = 0.5, phibar = 1.000000, A = 0.833333 (analytic t - lam^2/Delta = 0.833333), C = -0.101111
  L =   40: max |direct - Bloch (8.8)| = 1.12e-13; Omega(L/4) = 1.500e+00; (chi(d)-chi(L/2))/(pred(d)-pred(L/2)) over 6<=d<=L/2-6: max|ratio-1| = 4.75e-05; slope -(chi(12)-chi(8))/4 = 0.3000 vs phibar^2/(2A)(1-20/L) = 0.3000
  L =   80: max |direct - Bloch (8.8)| = 2.56e-13; Omega(L/4) = 3.000e+00; (chi(d)-chi(L/2))/(pred(d)-pred(L/2)) over 6<=d<=L/2-6: max|ratio-1| = 1.62e-05; slope -(chi(12)-chi(8))/4 = 0.4500 vs phibar^2/(2A)(1-20/L) = 0.4500
  L =  160: max |direct - Bloch (8.8)| = 5.95e-12; Omega(L/4) = 6.000e+00; (chi(d)-chi(L/2))/(pred(d)-pred(L/2)) over 6<=d<=L/2-6: max|ratio-1| = 6.85e-06; slope -(chi(12)-chi(8))/4 = 0.5250 vs phibar^2/(2A)(1-20/L) = 0.5250

[ring] member phibar0: lam = 0.5, phibar = 0.000000, A = 0.833333 (analytic t - lam^2/Delta = 0.833333), C = 0.111111
  L =   40: max |direct - Bloch (8.8)| = 4.30e-15; Omega(L/4) = 1.190e-05; chi(L/2)/(2n) = -3.333e-03 (O(1/L) constant); fitted decay rate of |chi(d)-chi(L/2)| (4<=d<=14) = 1.03774 vs nearest zero of det(h(k)-e0): 1.03749
  L =   80: max |direct - Bloch (8.8)| = 4.86e-15; Omega(L/4) = 3.714e-10; chi(L/2)/(2n) = -1.667e-03 (O(1/L) constant); fitted decay rate of |chi(d)-chi(L/2)| (4<=d<=14) = 1.03749 vs nearest zero of det(h(k)-e0): 1.03749
  L =  160: max |direct - Bloch (8.8)| = 2.35e-13; Omega(L/4) = 2.316e-15; chi(L/2)/(2n) = -8.333e-04 (O(1/L) constant); fitted decay rate of |chi(d)-chi(L/2)| (4<=d<=14) = 1.03749 vs nearest zero of det(h(k)-e0): 1.03749

[ring] member sector: lam = 0.0, phibar = 0.000000, A = 1.000000 (analytic t - lam^2/Delta = 1.000000), C = 0.000000
  L =   40: max |direct - Bloch (8.8)| = 3.28e-14; Omega(L/4) = 3.229e-06; max|chi/(2n) - exact (8.13)| = 3.28e-14 (kappa = 1.15881)
  L =   80: max |direct - Bloch (8.8)| = 1.84e-14; Omega(L/4) = 2.996e-11; max|chi/(2n) - exact (8.13)| = 1.83e-14 (kappa = 1.15881)
  L =  160: max |direct - Bloch (8.8)| = 1.89e-13; Omega(L/4) = 2.704e-16; max|chi/(2n) - exact (8.13)| = 1.89e-13 (kappa = 1.15881)

[torus] member LR: lam = 0.5, phibar = 1.000000, A = diag(0.833333, 1.000000) (offdiag 0.0e+00), C = [[-0.101111, 0.0e+00], [., 0.0e+00]]
  L = 20: max |direct - Bloch (8.8)| = 2.62e-14
    axis 1: (chi(d)-chi(L/2))/(pred(d)-pred(L/2)), pred = lattice form of phibar^2/(q^T A q): d=3: 1.0145, d=5: 1.0100, d=7: 1.0077
    axis 2: (chi(d)-chi(L/2))/(pred(d)-pred(L/2)), pred = lattice form of phibar^2/(q^T A q): d=3: 0.9783, d=5: 0.9847, d=7: 0.9875
  L = 32: max |direct - Bloch (8.8)| = 4.40e-14
    axis 1: (chi(d)-chi(L/2))/(pred(d)-pred(L/2)), pred = lattice form of phibar^2/(q^T A q): d=3: 1.0106, d=5: 1.0065, d=7: 1.0044
    axis 2: (chi(d)-chi(L/2))/(pred(d)-pred(L/2)), pred = lattice form of phibar^2/(q^T A q): d=3: 0.9842, d=5: 0.9901, d=7: 0.9927

[torus] member phibar0: lam = 0.5, phibar = 0.000000, A = diag(0.833333, 1.000000) (offdiag 0.0e+00), C = [[0.111111, 0.0e+00], [., 0.0e+00]]
  L = 20: max |direct - Bloch (8.8)| = 1.03e-14
    axis 1: d^2 (chi(d)-chi(corner))/(2n), pred = lattice form of q^T C q/(q^T A q): d=4: +0.00103 (pred -0.02040), d=6: -0.01708 (pred -0.01999), d=8: -0.02343 (pred -0.02235), d=10: -0.03209 (pred -0.02994); L -> infinity value of d^2 chi/(2n) = -C11 d^2 (d/dd1)^2 G_A = -0.01937
    axis 2: d^2 (chi(d)-chi(corner))/(2n), pred = lattice form of q^T C q/(q^T A q): d=4: +0.03249 (pred +0.02664), d=6: +0.02626 (pred +0.02756), d=8: +0.03012 (pred +0.03253), d=10: +0.04140 (pred +0.04457); L -> infinity value of d^2 chi/(2n) = -C11 d^2 (d/dd1)^2 G_A = +0.02325
  L = 32: max |direct - Bloch (8.8)| = 1.29e-14
    axis 1: d^2 (chi(d)-chi(corner))/(2n), pred = lattice form of q^T C q/(q^T A q): d=4: +0.00101 (pred -0.02056), d=6: -0.01627 (pred -0.01952), d=8: -0.01971 (pred -0.01931), d=10: -0.02059 (pred -0.01976); L -> infinity value of d^2 chi/(2n) = -C11 d^2 (d/dd1)^2 G_A = -0.01937
    axis 2: d^2 (chi(d)-chi(corner))/(2n), pred = lattice form of q^T C q/(q^T A q): d=4: +0.03191 (pred +0.02590), d=6: +0.02417 (pred +0.02508), d=8: +0.02412 (pred +0.02569), d=10: +0.02605 (pred +0.02738); L -> infinity value of d^2 chi/(2n) = -C11 d^2 (d/dd1)^2 G_A = +0.02325

member,L,d,chi_over_2n,Omega_over_2n
LR,40,0,3.9321437683959335,5.9294437685334564
LR,40,1,3.3926989262758225,5.389998926413345
LR,40,2,2.853841056244801,4.851141056382324
LR,40,3,2.334560899442846,4.331860899580369
LR,40,4,1.8415876831617874,3.83888768329931
LR,40,5,1.3773058588356821,3.3746058589732053
LR,40,6,0.9425603390220681,2.939860339159591
LR,40,7,0.5376505121755382,2.534950512313061
LR,40,8,0.16268246435901068,2.1599824644965335
LR,40,9,-0.18230621362341606,1.8149937865141068
LR,40,10,-0.49730220175105194,1.499997798386471
LR,40,11,-0.7823007801740507,1.2149992199634723
LR,40,12,-1.0373002764488777,0.9599997236886453
LR,40,13,-1.2623000979576602,0.7349999021798628
LR,40,14,-1.457300034710713,0.53999996542681
LR,40,15,-1.6223000122998563,0.37499998783766664
LR,40,16,-1.7573000043593598,0.2399999957781631
LR,40,17,-1.8623000015474416,0.13499999859008138
LR,40,18,-1.9373000005559375,0.05999999958158542
LR,40,19,-1.982300000218353,0.014999999919169893
LR,40,20,-1.997300000137523,0.0
LR,80,0,7.930793768395934,11.929443768396059
LR,80,1,7.38384892627581,11.382498926275936
LR,80,2,6.822491056244784,10.82114105624491
LR,80,3,6.2657108994428405,10.264360899442966
LR,80,4,5.720237683161806,9.718887683161931
LR,80,5,5.188455858835707,9.187105858835832
LR,80,6,4.671210339022121,8.669860339022247
LR,80,7,4.168800512175607,8.167450512175732
LR,80,8,3.681332464359104,7.679982464359229
LR,80,9,3.2088437863766996,7.2074937863768245
LR,80,10,2.751347798249067,6.749997798249192
LR,80,11,2.3088492198260933,6.3074992198262185
LR,80,12,1.8813497235513026,5.879999723551428
LR,80,13,1.468849902042574,5.467499902042699
LR,80,14,1.0713499652896235,5.069999965289749
LR,80,15,0.6888499877007371,4.687499987700862
LR,80,16,0.32134999564194033,4.319999995642066
LR,80,17,-0.031150001544154204,3.967499998455971
LR,80,18,-0.3686500005470766,3.6299999994530485
LR,80,19,-0.6911500001937729,3.3074999998063523
LR,80,20,-0.9986500000685838,2.9999999999315414
LR,80,21,-1.2911500000242249,2.7074999999759006
LR,80,22,-1.5686500000085082,2.429999999991617
LR,80,23,-1.8311500000029566,2.167499999997169
LR,80,24,-2.0786500000009966,1.9199999999991286
LR,80,25,-2.3111500000002967,1.6874999999998286
LR,80,26,-2.5286500000000576,1.4700000000000677
LR,80,27,-2.7311499999999835,1.2675000000001417
LR,80,28,-2.9186499999999778,1.0800000000001475
LR,80,29,-3.0911499999999936,0.9075000000001316
LR,80,30,-3.2486500000000125,0.7500000000001128
LR,80,31,-3.3911500000000387,0.6075000000000865
LR,80,32,-3.5186500000000756,0.4800000000000497
LR,80,33,-3.631150000000107,0.36750000000001837
LR,80,34,-3.728650000000138,0.26999999999998714
LR,80,35,-3.8111500000001546,0.1874999999999707
LR,80,36,-3.8786500000001722,0.11999999999995303
LR,80,37,-3.931150000000157,0.06749999999996836
LR,80,38,-3.9686500000001423,0.02999999999998293
LR,80,39,-3.9911500000001237,0.0075000000000016165
LR,80,40,-3.9986500000001253,0.0
LR,160,0,15.930118768401664,23.92944376839981
LR,160,1,15.379423926281365,23.378748926279513
LR,160,2,14.806816056250028,22.806141056248173
LR,160,3,14.231285899447819,22.230610899445963
LR,160,4,13.659562683166458,21.658887683164604
LR,160,5,13.094030858839966,21.093355858838112
LR,160,6,12.535535339025959,20.534860339024107
LR,160,7,11.984375512179103,19.98370051217725
LR,160,8,11.44065746436233,19.439982464360476
LR,160,9,10.904418786379592,18.90374378637774
LR,160,10,10.375672798251669,18.374997798249815
LR,160,11,9.854424219828445,17.85374921982659
LR,160,12,9.340674723553366,17.339999723551514
LR,160,13,8.834424902044358,16.833749902042506
LR,160,14,8.335674965291147,16.334999965289292
LR,160,15,7.844424987701981,15.843749987700127
LR,160,16,7.360674995642964,15.359999995641111
LR,160,17,6.8844249984565895,14.883749998454736
LR,160,18,6.415674999453368,14.414999999451513
LR,160,19,5.9544249998063625,13.953749999804508
LR,160,20,5.5006749999312685,13.499999999929415
LR,160,21,5.054424999975284,13.05374999997343
LR,160,22,4.615674999990671,12.614999999988818
LR,160,23,4.1844249999959,12.183749999994046
LR,160,24,3.7606749999976072,11.759999999995753
LR,160,25,3.3444249999980653,11.343749999996211
LR,160,26,2.935674999998029,10.934999999996176
LR,160,27,2.534424999997845,10.53374999999599
LR,160,28,2.140674999997621,10.139999999995768
LR,160,29,1.7544249999973462,9.753749999995492
LR,160,30,1.375674999997091,9.374999999995238
LR,160,31,1.0044249999968469,9.003749999994993
LR,160,32,0.6406749999966178,8.639999999994764
LR,160,33,0.2844249999963933,8.283749999994539
LR,160,34,-0.06432500000381677,7.9349999999943295
LR,160,35,-0.4055750000039921,7.593749999994154
LR,160,36,-0.7393250000041696,7.259999999993976
LR,160,37,-1.0655750000043083,6.933749999993838
LR,160,38,-1.384325000004438,6.614999999993708
LR,160,39,-1.6955750000045349,6.303749999993611
LR,160,40,-1.9993250000046046,5.999999999993541
LR,160,41,-2.295575000004653,5.703749999993493
LR,160,42,-2.584325000004664,5.414999999993482
LR,160,43,-2.865575000004637,5.133749999993509
LR,160,44,-3.139325000004582,4.859999999993564
LR,160,45,-3.405575000004487,4.593749999993659
LR,160,46,-3.664325000004381,4.334999999993765
LR,160,47,-3.915575000004265,4.083749999993881
LR,160,48,-4.159325000004122,3.839999999994024
LR,160,49,-4.395575000003972,3.6037499999941742
LR,160,50,-4.624325000003847,3.374999999994299
LR,160,51,-4.845575000003649,3.1537499999944973
LR,160,52,-5.059325000003461,2.9399999999946855
LR,160,53,-5.265575000003235,2.7337499999949113
LR,160,54,-5.464325000003026,2.5349999999951205
LR,160,55,-5.655575000002826,2.34374999999532
LR,160,56,-5.839325000002623,2.159999999995523
LR,160,57,-6.015575000002417,1.9837499999957293
LR,160,58,-6.184325000002265,1.814999999995881
LR,160,59,-6.3455750000020315,1.6537499999961147
LR,160,60,-6.499325000001851,1.4999999999962954
LR,160,61,-6.645575000001585,1.3537499999965608
LR,160,62,-6.784325000001448,1.2149999999966985
LR,160,63,-6.915575000001203,1.083749999996943
LR,160,64,-7.039325000001023,0.9599999999971232
LR,160,65,-7.155575000000741,0.8437499999974047
LR,160,66,-7.26432500000056,0.7349999999975863
LR,160,67,-7.365575000000292,0.6337499999978542
LR,160,68,-7.4593250000001365,0.5399999999980096
LR,160,69,-7.545574999999953,0.4537499999981929
LR,160,70,-7.624324999999913,0.3749999999982334
LR,160,71,-7.695574999999777,0.30374999999836927
LR,160,72,-7.759324999999707,0.2399999999984388
LR,160,73,-7.815574999999554,0.1837499999985921
LR,160,74,-7.864324999999405,0.13499999999874124
LR,160,75,-7.90557499999927,0.09374999999887645
LR,160,76,-7.939324999999025,0.0599999999991212
LR,160,77,-7.965574999998887,0.03374999999925876
LR,160,78,-7.984324999998589,0.014999999999557367
LR,160,79,-7.995574999998441,0.003749999999705267
LR,160,80,-7.999324999998146,0.0
phibar0,40,0,0.3780517023649078,0.38138503495546294
phibar0,40,1,0.1318076057168095,0.13514093830736462
phibar0,40,2,0.0445528491277017,0.047886181718256815
phibar0,40,3,0.0136347777868711,0.016968110377426213
phibar0,40,4,0.002679190116867975,0.006012522707423088
phibar0,40,5,-0.0012028405528977516,0.0021304920376573615
phibar0,40,6,-0.0025784091280334665,0.0007549234625216466
phibar0,40,7,-0.0030658315792873097,0.0002675010112678034
phibar0,40,8,-0.0032385460846054114,9.478650594970175e-05
phibar0,40,9,-0.003299746179655197,3.3586410899916035e-05
phibar0,40,10,-0.0033214319762608544,1.1900614294258708e-05
phibar0,40,11,-0.0033291161763105313,4.216414244581808e-06
phibar0,40,12,-0.0033318390151572857,1.4935753978274555e-06
phibar0,40,13,-0.0033328038326201365,5.287579349765731e-07
phibar0,40,14,-0.0033331457080674996,1.868824876134767e-07
phibar0,40,15,-0.0033332668479075416,6.574264757152476e-08
phibar0,40,16,-0.0033333097695996666,2.2820955446548052e-08
phibar0,40,17,-0.0033333249692517703,7.621303342759955e-09
phibar0,40,18,-0.0033333303288076393,2.261747473770309e-09
phibar0,40,19,-0.003333332153626549,4.3692856407581693e-10
phibar0,40,20,-0.003333332590555113,0.0
phibar0,80,0,0.3797183690315751,0.3813850356982422
phibar0,80,1,0.13347427238347565,0.1351409390501428
phibar0,80,2,0.046219515794368324,0.04788618246103548
phibar0,80,3,0.015301444453537635,0.016968111120204795
phibar0,80,4,0.004345856783535015,0.006012523450202175
phibar0,80,5,0.00046382611376921505,0.0021304927804363747
phibar0,80,6,-0.0009117424613672121,0.0007549242052999473
phibar0,80,7,-0.001399164912621461,0.00026750175404569834
phibar0,80,8,-0.0015718794179401423,9.47872487270171e-05
phibar0,80,9,-0.0016330795129929933,3.358715367416613e-05
phibar0,80,10,-0.0016547653096056047,1.1901357061554728e-05
phibar0,80,11,-0.001662449509676465,4.217156990694469e-06
phibar0,80,12,-0.001665172348582903,1.4943180842565216e-06
phibar0,80,13,-0.0016661371662138502,5.295004533091997e-07
phibar0,80,14,-0.0016664790421356368,1.8762453152265136e-07
phibar0,80,15,-0.0016666001833151116,6.648335204779456e-08
phibar0,80,16,-0.001666643108787795,2.355787936448618e-08
phibar0,80,17,-0.0016666583191083995,8.347558759893084e-09
phibar0,80,18,-0.001666663708771783,2.957895376331718e-09
phibar0,80,19,-0.0016666656185589438,1.0481082156690857e-09
phibar0,80,20,-0.0016666662952779187,3.7138924075842683e-10
phibar0,80,21,-0.0016666665350678967,1.315992627370921e-10
phibar0,80,22,-0.0016666666200356893,4.663147016963076e-11
phibar0,80,23,-0.0016666666501436963,1.6523463153284013e-11
phibar0,80,24,-0.0016666666608120583,5.8551011261620545e-12
phibar0,80,25,-0.0016666666645919943,2.0751651265416005e-12
phibar0,80,26,-0.0016666666659318303,7.353291153061603e-13
phibar0,80,27,-0.001666666666406527,2.606324444459629e-13
phibar0,80,28,-0.0016666666665744807,9.26786859062334e-14
phibar0,80,29,-0.0016666666666343651,3.2794296792038047e-14
phibar0,80,30,-0.0016666666666555496,1.1609853703409279e-14
phibar0,80,31,-0.0016666666666613952,5.764269270236433e-15
phibar0,80,32,-0.001666666666665672,1.487525380650112e-15
phibar0,80,33,-0.0016666666666662376,9.217886870471759e-16
phibar0,80,34,-0.001666666666666884,2.7538735181131813e-16
phibar0,80,35,-0.0016666666666671594,1.953732314818879e-16
phibar0,80,36,-0.0016666666666670554,1.216474837528736e-16
phibar0,80,37,-0.001666666666666964,1.216474837528736e-16
phibar0,80,38,-0.0016666666666669714,1.1427490897997217e-16
phibar0,80,39,-0.0016666666666670857,1.8431436932253575e-17
phibar0,80,40,-0.0016666666666670673,0.0
phibar0,160,0,0.3805517023651383,0.3813850356984724
phibar0,160,1,0.13430760571689299,0.13514093905022703
phibar0,160,2,0.047052849127733165,0.04788618246106721
phibar0,160,3,0.016134777786883915,0.016968111120217965
phibar0,160,4,0.005179190116873425,0.006012523450207474
phibar0,160,5,0.0012971594471039662,0.002130492780438015
phibar0,160,6,-7.840912803348484e-05,0.000754924205300564
phibar0,160,7,-0.0005658315792887459,0.00026750175404530294
phibar0,160,8,-0.0007385460846076147,9.478724872643413e-05
phibar0,160,9,-0.0007997461796606863,3.3587153673362517e-05
phibar0,160,10,-0.000821431976270926,1.190135706312281e-05
phibar0,160,11,-0.0008291161763410068,4.217156993042092e-06
phibar0,160,12,-0.0008318390152487246,1.4943180853242439e-06
phibar0,160,13,-0.0008328038328801946,5.295004538542281e-07
phibar0,160,14,-0.0008331457088029494,1.8762453109948726e-07
phibar0,160,15,-0.0008332668499803474,6.648335370141971e-08
phibar0,160,16,-0.0008333097754527433,2.355788130553333e-08
phibar0,160,17,-0.0008333249857742602,8.347559788692525e-09
phibar0,160,18,-0.000833330375437216,2.9578968328489164e-09
phibar0,160,19,-0.000833332285223771,1.0481102778216178e-09
phibar0,160,20,-0.0008333329619430541,3.713909947807015e-10
phibar0,160,21,-0.0008333332017334779,1.3160057093543343e-10
phibar0,160,22,-0.0008333332867028359,4.663121299687545e-11
phibar0,160,23,-0.0008333333168092415,1.652480734713746e-11
phibar0,160,24,-0.0008333333274772585,5.856790313146787e-12
phibar0,160,25,-0.0008333333312581525,2.0758963124867247e-12
phibar0,160,26,-0.0008333333325976819,7.363669136256634e-13
phibar0,160,27,-0.0008333333330735068,2.605420219847776e-13
phibar0,160,28,-0.000833333333240809,9.32398689507119e-14
phibar0,160,29,-0.0008333333332995383,3.45105888310826e-14
phibar0,160,30,-0.0008333333333194546,1.4594228603392878e-14
phibar0,160,31,-0.0008333333333275128,6.536004376611615e-15
phibar0,160,32,-0.0008333333333312085,2.8403928514775245e-15
phibar0,160,33,-0.0008333333333329087,2.3156389999945404e-15
phibar0,160,34,-0.0008333333333322528,2.3156389999945404e-15
phibar0,160,35,-0.0008333333333322829,2.3156389999945404e-15
phibar0,160,36,-0.0008333333333321214,2.3156389999945404e-15
phibar0,160,37,-0.0008333333333324653,2.3156389999945404e-15
phibar0,160,38,-0.0008333333333324138,2.3156389999945404e-15
phibar0,160,39,-0.0008333333333325265,2.3156389999945404e-15
phibar0,160,40,-0.0008333333333327378,2.3156389999945404e-15
phibar0,160,41,-0.0008333333333323634,2.3156389999945404e-15
phibar0,160,42,-0.0008333333333317332,2.3156389999945404e-15
phibar0,160,43,-0.000833333333332436,2.091968091810781e-15
phibar0,160,44,-0.0008333333333321946,2.091968091810781e-15
phibar0,160,45,-0.0008333333333321572,2.091968091810781e-15
phibar0,160,46,-0.0008333333333319602,2.091968091810781e-15
phibar0,160,47,-0.0008333333333319569,2.091968091810781e-15
phibar0,160,48,-0.0008333333333328301,2.0534789146875454e-15
phibar0,160,49,-0.0008333333333328439,2.0534789146875454e-15
phibar0,160,50,-0.0008333333333325611,2.0534789146875454e-15
phibar0,160,51,-0.0008333333333325628,2.0534789146875454e-15
phibar0,160,52,-0.0008333333333319954,2.0534789146875454e-15
phibar0,160,53,-0.0008333333333326084,1.760310647247465e-15
phibar0,160,54,-0.0008333333333322885,1.760310647247465e-15
phibar0,160,55,-0.0008333333333329092,1.1396049034995137e-15
phibar0,160,56,-0.0008333333333332324,8.164042358815848e-16
phibar0,160,57,-0.0008333333333332695,7.793245215825806e-16
phibar0,160,58,-0.000833333333333478,6.191878607064716e-16
phibar0,160,59,-0.0008333333333335409,6.191878607064716e-16
phibar0,160,60,-0.0008333333333337726,6.191878607064716e-16
phibar0,160,61,-0.0008333333333335785,6.191878607064716e-16
phibar0,160,62,-0.0008333333333334297,6.191878607064716e-16
phibar0,160,63,-0.0008333333333338249,6.049848122469115e-16
phibar0,160,64,-0.000833333333333528,6.049848122469115e-16
phibar0,160,65,-0.0008333333333335779,6.049848122469115e-16
phibar0,160,66,-0.0008333333333336403,6.049848122469115e-16
phibar0,160,67,-0.0008333333333335279,6.049848122469115e-16
phibar0,160,68,-0.0008333333333336353,6.049848122469115e-16
phibar0,160,69,-0.000833333333333502,6.049848122469115e-16
phibar0,160,70,-0.0008333333333336653,6.049848122469115e-16
phibar0,160,71,-0.0008333333333335651,6.049848122469115e-16
phibar0,160,72,-0.0008333333333335609,6.049848122469115e-16
phibar0,160,73,-0.0008333333333335152,6.049848122469115e-16
phibar0,160,74,-0.0008333333333334759,6.049848122469115e-16
phibar0,160,75,-0.0008333333333334439,6.049848122469115e-16
phibar0,160,76,-0.0008333333333336427,4.0614213381306996e-16
phibar0,160,77,-0.0008333333333336939,3.5496779127175415e-16
phibar0,160,78,-0.000833333333333956,9.562663161322149e-17
phibar0,160,79,-0.0008333333333339532,9.562663161322149e-17
phibar0,160,80,-0.0008333333333340489,0.0
sector,40,0,0.3481553119113629,0.3481553118514522
sector,40,1,0.10927179584493199,0.10927179578502129
sector,40,2,0.0342959735458996,0.0342959734859889
sector,40,3,0.010764111565716508,0.010764111505805812
sector,40,4,0.0033784169341081983,0.0033784168741975017
sector,40,5,0.0010603477036620558,0.0010603476437513592
sector,40,6,0.00033280002870877696,0.0003327999687980802
sector,40,7,0.00010445239681865053,0.00010445233690795379
sector,40,8,3.278336015609222e-05,3.278330024539548e-05
sector,40,9,1.0289363728091831e-05,1.0289303817395093e-05
sector,40,10,3.2294128920752315e-06,3.2293529813784937e-06
sector,40,11,1.0135813945002636e-06,1.0135214838035258e-06
sector,40,12,3.1812198822168134e-07,3.1806207752494353e-07
sector,40,13,9.984556485383969e-08,9.978565415710188e-08
sector,40,14,3.133748877322891e-08,3.12775780764911e-08
sector,40,15,9.835645788493566e-09,9.775735091755756e-09
sector,40,16,3.0872712968987165e-09,3.027360600160907e-09
sector,40,17,9.698037539045481e-10,9.098930571667385e-10
sector,40,18,3.070421532042761e-10,2.4713145646646645e-10
sector,40,19,1.0484377688940727e-10,4.493308015159764e-11
sector,40,20,5.991069673780963e-11,0.0
sector,80,0,0.34815531191137733,0.34815531191137744
sector,80,1,0.10927179584493663,0.10927179584493675
sector,80,2,0.03429597354590109,0.03429597354590122
sector,80,3,0.010764111565717039,0.010764111565717169
sector,80,4,0.003378416934108325,0.003378416934108456
sector,80,5,0.00106034770366193,0.0010603477036620608
sector,80,6,0.0003328000287086935,0.00033280002870882423
sector,80,7,0.00010445239681847597,0.00010445239681860675
sector,80,8,3.278336015603042e-05,3.27833601561612e-05
sector,80,9,1.0289363727904264e-05,1.0289363728035046e-05
sector,80,10,3.2294128918177335e-06,3.2294128919485153e-06
sector,80,11,1.0135813934854503e-06,1.0135813936162322e-06
sector,80,12,3.1812198545994735e-07,3.1812198559072924e-07
sector,80,13,9.984555584933736e-08,9.984555598011925e-08
sector,80,14,3.133746011112475e-08,3.133746024190664e-08
sector,80,15,9.835554575648997e-09,9.835554706430884e-09
sector,80,16,3.0869806185015655e-09,3.0869807492834526e-09
sector,80,17,9.688777867023282e-10,9.688779174842153e-10
sector,80,18,3.0409145145536554e-10,3.040915822372526e-10
sector,80,19,9.54419410257451e-11,9.544207180763216e-11
sector,80,20,2.9955361379330886e-11,2.995549216121794e-11
sector,80,21,9.401781111452456e-12,9.401911893339512e-12
sector,80,22,2.950878744915203e-12,2.951009526802259e-12
sector,80,23,9.263052022472074e-13,9.264359841342634e-13
sector,80,24,2.9084278930537055e-13,2.909735711924266e-13
sector,80,25,9.131645363914115e-14,9.144723552619721e-14
sector,80,26,2.8685448385124684e-14,2.881623027218075e-14
sector,80,27,9.020426549807836e-15,9.1512084368639e-15
sector,80,28,2.7790812186234692e-15,2.9098631056795332e-15
sector,80,29,9.301099387210021e-16,1.060891825777066e-15
sector,80,30,2.1507860596681194e-16,3.458604930228759e-16
sector,80,31,-1.3078188705606397e-16,2.9883322379131716e-16
sector,80,32,-1.0842021724855044e-16,2.7647155398380363e-16
sector,80,33,8.40256683676266e-18,2.3527187142935446e-16
sector,80,34,-2.710505431213761e-18,2.3527187142935446e-16
sector,80,35,-5.719166459861036e-17,2.3527187142935446e-16
sector,80,36,-6.722053469410127e-17,2.3527187142935446e-16
sector,80,37,-5.421010862427522e-18,1.734723475976807e-16
sector,80,38,1.6805133673525319e-16,6.396792817664476e-17
sector,80,39,1.566672139241554e-16,5.2583805365546965e-17
sector,80,40,1.0408340855860843e-16,0.0
sector,160,0,0.3481553119112064,0.3481553119112066
sector,160,1,0.1092717958448834,0.10927179584488357
sector,160,2,0.0342959735458846,0.03429597354588477
sector,160,3,0.010764111565711729,0.010764111565711894
sector,160,4,0.0033784169341067086,0.003378416934106874
sector,160,5,0.0010603477036615853,0.0010603477036617505
sector,160,6,0.0003328000287087043,0.00033280002870886966
sector,160,7,0.00010445239681864131,0.00010445239681880665
sector,160,8,3.2783360156212566e-05,3.278336015637791e-05
sector,160,9,1.028936372806581e-05,1.0289363728231151e-05
sector,160,10,3.2294128919250695e-06,3.2294128920904103e-06
sector,160,11,1.0135813936377807e-06,1.0135813938031216e-06
sector,160,12,3.1812198569576133e-07,3.1812198586110216e-07
sector,160,13,9.984555593011042e-08,9.984555609545125e-08
sector,160,14,3.133746001029395e-08,3.133746017563478e-08
sector,160,15,9.83555440705556e-09,9.83555457239639e-09
sector,160,16,3.086980659159147e-09,3.0869808244999783e-09
sector,160,17,9.688777227344e-10,9.688778880752313e-10
sector,160,18,3.0409131376168963e-10,3.0409147910252093e-10
sector,160,19,9.544195945718204e-11,9.544212479801334e-11
sector,160,20,2.995541314998462e-11,2.9955578490815926e-11
sector,160,21,9.401812553315458e-12,9.401977894146762e-12
sector,160,22,2.9509603311286825e-12,2.9511256719599865e-12
sector,160,23,9.26168321722931e-13,9.263336625542351e-13
sector,160,24,2.906865286672611e-13,2.908518694985651e-13
sector,160,25,9.128684136730514e-14,9.145218219860918e-14
sector,160,26,2.8679315866586563e-14,2.88446566978906e-14
sector,160,27,9.062303858720089e-15,9.227644690024128e-15
sector,160,28,2.724871109999194e-15,2.8902119413032334e-15
sector,160,29,8.394435320469018e-16,1.0047843633509412e-15
sector,160,30,3.016792544940916e-16,4.67020085798131e-16
sector,160,31,1.111307226797642e-16,2.813504637599884e-16
sector,160,32,0.0,2.813504637599884e-16
sector,160,33,9.75781955236954e-18,2.813504637599884e-16
sector,160,34,1.1600963245594897e-16,2.813504637599884e-16
sector,160,35,-3.957337929572091e-17,2.7042373874040793e-16
sector,160,36,-1.0489656018797255e-16,2.7042373874040793e-16
sector,160,37,-1.111307226797642e-17,2.7042373874040793e-16
sector,160,38,4.526544070126981e-17,2.7042373874040793e-16
sector,160,39,5.854691731421724e-17,2.7042373874040793e-16
sector,160,40,2.7376104855258987e-17,2.7042373874040793e-16
sector,160,41,2.4936649967166602e-17,2.7042373874040793e-16
sector,160,42,8.660064852727967e-17,2.7042373874040793e-16
sector,160,43,9.893344823930228e-18,2.7042373874040793e-16
sector,160,44,-1.328147661294743e-17,2.7042373874040793e-16
sector,160,45,-2.4259023609363162e-17,2.7042373874040793e-16
sector,160,46,-1.4162390878091902e-17,2.7042373874040793e-16
sector,160,47,1.0842021724855044e-17,2.7042373874040793e-16
sector,160,48,2.1955093992831465e-17,2.7042373874040793e-16
sector,160,49,-6.213833701057547e-17,2.7042373874040793e-16
sector,160,50,-4.0488174878755556e-17,2.7042373874040793e-16
sector,160,51,-2.1311348952918197e-17,2.7042373874040793e-16
sector,160,52,-1.638161719989817e-17,2.7042373874040793e-16
sector,160,53,2.668153783851046e-18,2.7042373874040793e-16
sector,160,54,6.696642480992498e-17,2.7042373874040793e-16
sector,160,55,1.050829074363685e-16,2.7042373874040793e-16
sector,160,56,5.488773498207866e-18,2.573624906937466e-16
sector,160,57,-5.797093491008432e-17,2.573624906937466e-16
sector,160,58,-1.6534083130403943e-16,2.573624906937466e-16
sector,160,59,-1.1201163694490868e-16,2.0403329633461587e-16
sector,160,60,2.89346454782069e-17,1.83772268236293e-16
sector,160,61,6.349358972618235e-17,1.83772268236293e-16
sector,160,62,5.746271514173174e-17,1.83772268236293e-16
sector,160,63,1.9922214919421144e-17,1.83772268236293e-16
sector,160,64,9.486769009248164e-18,1.83772268236293e-16
sector,160,65,5.651403824080692e-17,1.83772268236293e-16
sector,160,66,-2.642742795433417e-17,1.83772268236293e-16
sector,160,67,7.155734338404329e-17,1.83772268236293e-16
sector,160,68,9.202165938970719e-17,1.83772268236293e-16
sector,160,69,5.949559421514206e-17,1.736078728692414e-16
sector,160,70,8.185726402265558e-17,1.736078728692414e-16
sector,160,71,-9.175060884658581e-17,1.4026865606531214e-16
sector,160,72,3.3881317890172014e-17,1.191267137018448e-16
sector,160,73,4.8518047218726323e-17,1.191267137018448e-16
sector,160,74,-4.2012834183813297e-17,1.009663273127126e-16
sector,160,75,-1.0842021724855044e-17,1.009663273127126e-16
sector,160,76,-1.4907779871675686e-18,1.009663273127126e-16
sector,160,77,-7.060866648311848e-17,1.009663273127126e-16
sector,160,78,-6.816921159502609e-17,9.852687242462022e-17
sector,160,79,-2.2090619264392153e-17,5.244828009398628e-17
sector,160,80,3.0357660829594124e-17,0.0

member,L,axis,d,chi_over_2n,lattice_pred_over_2n
LR,20,1,0,0.5688328827060117,0.5757469225778707
LR,20,1,1,0.29946220439568694,0.29379341799811226
LR,20,1,2,0.17600535903625827,0.1717589222847163
LR,20,1,3,0.10500609679378184,0.10231777099315278
LR,20,1,4,0.057963021633844564,0.05618647404081099
LR,20,1,5,0.024549581040927086,0.023284138839156823
LR,20,1,6,0.00027040700537074477,-0.00070388275841623
LR,20,1,7,-0.017134921258405315,-0.01794134480627634
LR,20,1,8,-0.02890467976063648,-0.029615934487158116
LR,20,1,9,-0.03573135536417715,-0.036393840387363714
LR,20,1,10,-0.03797033167382227,-0.038617811781505175
LR,20,2,0,0.5688328827060117,0.5757469225778707
LR,20,2,1,0.3020386495212501,0.3119580779853708
LR,20,2,2,0.1837977939599422,0.18991527306911948
LR,20,2,3,0.11608318263536088,0.11967446123649661
LR,20,2,4,0.07102819965388464,0.07325106448734632
LR,20,2,5,0.03888017457002738,0.040353672951359
LR,20,2,6,0.015448320541873865,0.016491832310272316
LR,20,2,7,-0.0013769082079536433,-0.0005884364112234614
LR,20,2,8,-0.01276175213627436,-0.012123280855082012
LR,20,2,9,-0.019366131987478694,-0.018807075014367226
LR,20,2,10,-0.021532171548798263,-0.02099801320363807
LR,32,1,0,0.6507234511350054,0.6577355754612638
LR,32,1,1,0.3809481734433833,0.3753799452198417
LR,32,1,2,0.2562666828147108,0.2521280739117587
LR,32,1,3,0.1831904147771513,0.18062156317576777
LR,32,1,4,0.13316476004359698,0.13152312211370776
LR,32,1,5,0.0957896387131431,0.09467772386524886
LR,32,1,6,0.06647591439634476,0.06567650839637991
LR,32,1,7,0.042847993616517796,0.04224047872501025
LR,32,1,8,0.0235276582645424,0.023042558275798264
LR,32,1,9,0.007650805255384788,0.007246450325801672
LR,32,1,10,-0.005353695174272785,-0.005703370297844831
LR,32,1,11,-0.01587678905898846,-0.016188803906223966
LR,32,1,12,-0.024191531019844385,-0.024477498080572993
LR,32,1,13,-0.030489513989209852,-0.030757735453382992
LR,32,1,14,-0.03490298933150975,-0.03515972413365913
LR,32,1,15,-0.03751849215097419,-0.037768770842226185
LR,32,1,16,-0.03838503426310662,-0.03863322993001972
LR,32,2,0,0.6507234511350054,0.6577355754612638
LR,32,2,1,0.3835040149650625,0.3935201166796646
LR,32,2,2,0.2639799970139178,0.2701898312683035
LR,32,2,3,0.19410145851393873,0.19777760728133464
LR,32,2,4,0.145963236400425,0.14825986264829044
LR,32,2,5,0.10975736883085956,0.11128919972109609
LR,32,2,6,0.08121922265168495,0.08230030705982389
LR,32,2,7,0.05814377466082835,0.05894227671251387
LR,32,2,8,0.03924264518936533,0.03985471940523591
LR,32,2,9,0.023699067113269783,0.02418330931384087
LR,32,2,10,0.010966595613487088,0.011360818529044553
LR,32,2,11,0.0006667715435866118,0.0009966762596469135
LR,32,2,12,-0.00746755961080449,-0.007183622733528964
LR,32,2,13,-0.013625588103910445,-0.013373849935116065
LR,32,2,14,-0.017938911534560745,-0.017708476385422386
LR,32,2,15,-0.020494150958131396,-0.02027587189711899
LR,32,2,16,-0.02134056731739653,-0.021126240870760413
phibar0,20,1,0,0.222392079025308,0.06265616726789026
phibar0,20,1,1,0.05194736983965655,-0.017768731379630035
phibar0,20,1,2,0.012015042666759517,-0.005843689352582487
phibar0,20,1,3,0.0022509553739743482,-0.0025899769088617353
phibar0,20,1,4,-0.00012128624857638822,-0.0014698807192820964
phibar0,20,1,5,-0.0006214170471566358,-0.0009904766480704262
phibar0,20,1,6,-0.0006601206289822344,-0.0007500601720292163
phibar0,20,1,7,-0.00060592686282907,-0.0006180952814096391
phibar0,20,1,8,-0.0005518136575621882,-0.0005440745247648135
phibar0,20,1,9,-0.0005178765041200058,-0.000505991373585249
phibar0,20,1,10,-0.0005066209163133493,-0.0004942145474588757
phibar0,20,2,0,0.222392079025308,0.06265616726789026
phibar0,20,2,1,0.0528176577282949,0.01856608364065338
phibar0,20,2,2,0.014388016473049499,0.00657357953859853
phibar0,20,2,3,0.004643948189436581,0.002842313499600023
phibar0,20,2,4,0.0018446364761663411,0.0014701295723567288
phibar0,20,2,5,0.000912125585637499,0.0008714040994440011
phibar0,20,2,6,0.000543687923863849,0.0005708744576126005
phibar0,20,2,7,0.000372573358546593,0.00040605525913891465
phibar0,20,2,8,0.00028488383567632533,0.0003134723336908887
phibar0,20,2,9,0.00024149261197710354,0.0002657132329008419
phibar0,20,2,10,0.00022824638376151127,0.00025091599777078054
phibar0,32,1,0,0.22248314517304082,0.06274552828774162
phibar0,32,1,1,0.05203963123859086,-0.01767814829529352
phibar0,32,1,2,0.01211087043985202,-0.005749469176087435
phibar0,32,1,3,0.0023526745361542424,-0.002489778879913143
phibar0,32,1,4,-1.1387978674517367e-05,-0.0013614455709885292
phibar0,32,1,5,-0.0005010224054856073,-0.0008715735402020184
phibar0,32,1,6,-0.000526735268857711,-0.0006183523285598423
phibar0,32,1,7,-0.000456625060248717,-0.0004708997689510622
phibar0,32,1,8,-0.00038284372695828844,-0.0003779781586373959
phibar0,32,1,9,-0.0003240856103080963,-0.0003162533040298166
phibar0,32,1,10,-0.00028067830607842755,-0.00027382004928712026
phibar0,32,1,11,-0.00024941747635801075,-0.00024408150845245136
phibar0,32,1,12,-0.00022724050709881417,-0.00022316127174074822
phibar0,32,1,13,-0.0002118888425096118,-0.0002086937426536027
phibar0,32,1,14,-0.00020184529267134666,-0.0001992152433935193
phibar0,32,1,15,-0.00019616159529317118,-0.00019384255206119846
phibar0,32,1,16,-0.00019432154977595074,-0.00019210150723882047
phibar0,32,2,0,0.22248314517304082,0.06274552828774162
phibar0,32,2,1,0.052907726784753584,0.01865442627313965
phibar0,32,2,2,0.014475079626098812,0.0066588467997439095
phibar0,32,2,3,0.004725945672311243,0.002922380233407243
phibar0,32,2,4,0.0019193997072542016,0.0015427312911913036
phibar0,32,2,5,0.0009772819470400176,0.0009340248982216155
phibar0,32,2,6,0.0005965088445436992,0.0006205714310329925
phibar0,32,2,7,0.0004097383611367165,0.0004391867305881472
phibar0,32,2,8,0.00030211574616729087,0.00032527695735986857
phibar0,32,2,9,0.00023298043202893979,0.0002496467929788803
phibar0,32,2,10,0.0001856807593158509,0.00019757084139507137
phibar0,32,2,11,0.00015230126116346605,0.00016097025101053297
phibar0,32,2,12,0.00012857652589805274,0.00013513412941764885
phibar0,32,2,13,0.00011200454315916112,0.00011720471036665052
phibar0,32,2,14,0.00010105826597337273,0.00010542210350046262
phibar0,32,2,15,9.481828659943964e-05,9.872820321022037e-05
phibar0,32,2,16,9.279033162332785e-05,9.655639752598045e-05
